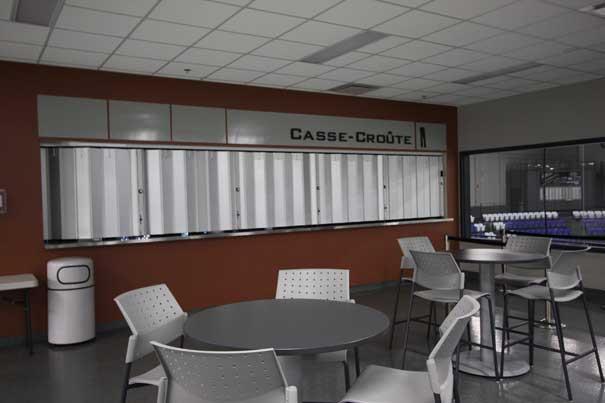

Folding Aluminum Closure model "Global" Protection from Prying Eyes. Total protection from prying eyes! With its full-height aluminum panels, this model is totally opaque. Ideal for banks, automatic teller machines, warehouses, reception rooms, etc.

ARCHITECTURAL SPECIFICATIONS

• PRODUCT SPECIFICATIONS

Curtain

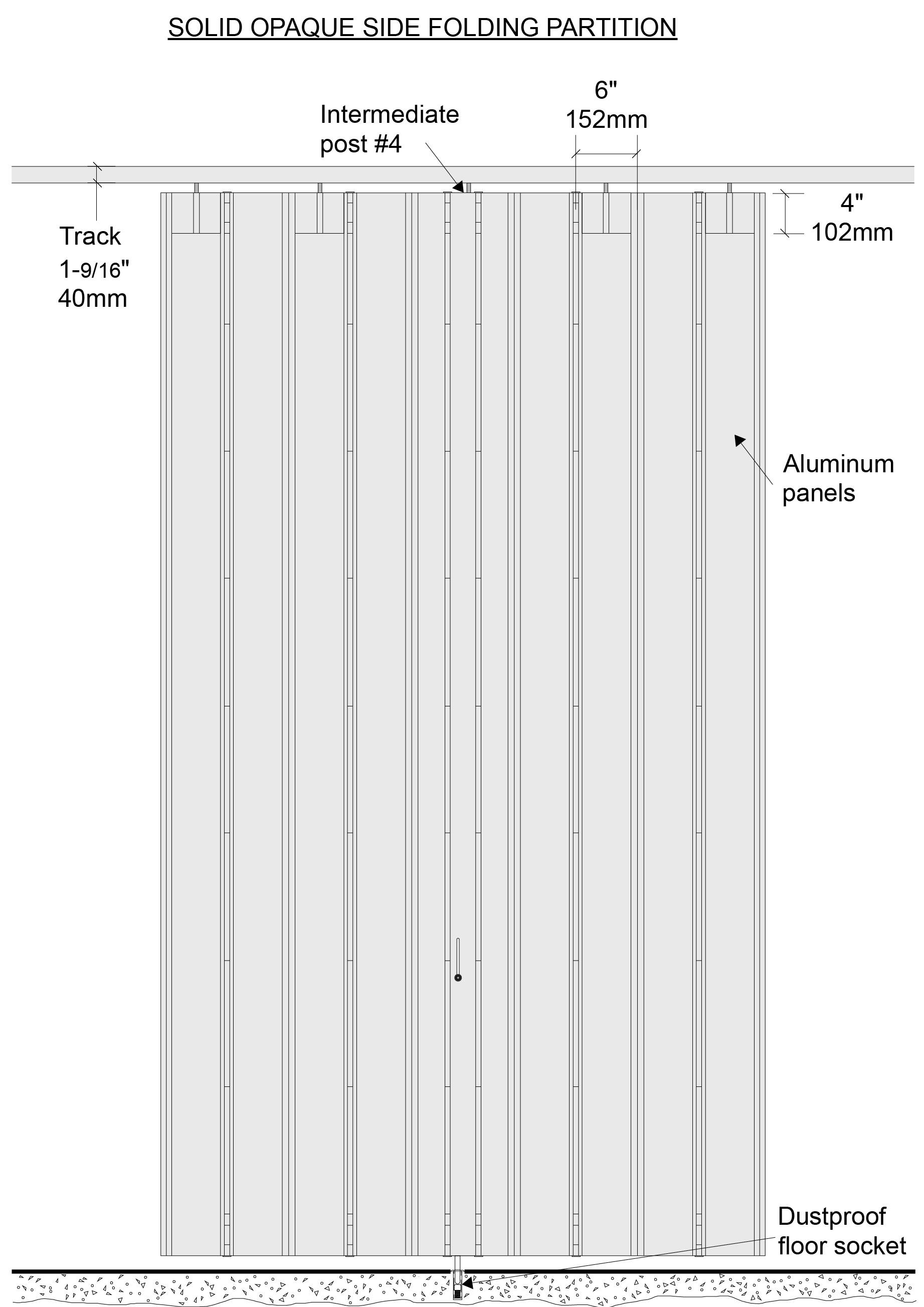

A. The curtain is constructed of 6” (152mm) wide modules linked together by a continuous aluminum hinge. These hinges hold aluminum panels 5-3/8” (136mm) wide and 1/16” (1,6mm) thick completely recessed throughout their full height. The curtain consists of full height aluminum panels and composed of modules with a 15° angle between them to facilitate the operation of the closure.

Locking

A. Lead post shall be equipped with a hook bolt lock with cylinders each side.
B. Lead post shall engage a full height wall jamb.
C. Trailing post shall be self-locking at the top and bottom inside the storage pocket.
D. Free floating intermediate posts shall be locate at all curves and at recommended intervals of 10 feet (3m) or 5 feet (1,5m) for counter top units. Intermediate posts shall be equipped with self-adjusting spring loaded drop bolts activated from the inside only. Drop bolts shall engage dustproof stainless steel receptacles.

Track

A. Curtain shall be hung from an overhead track 1-5/16” (33mm) wide by 1-9/16” (40mm) high. Track shall be tempered aluminum alloy 6063-T5.
B. Curves where required shall be 14” (356mm) radius standard.

Stacking

A. Stacking shall not exceed a depth of 1.15” per foot of closure width plus 3” for each post (lead, end or intermediate). (95mm/lin. m + 76mm per post). Full egress doors add 7” (178mm).

Finish

A. Finish shall be standard clear anodized or acrylic paint in white, black, medium bronze #40, light bronze #26.
